| Quantity: | |
|---|---|
not easy to rust, it looks shine, strongly to use

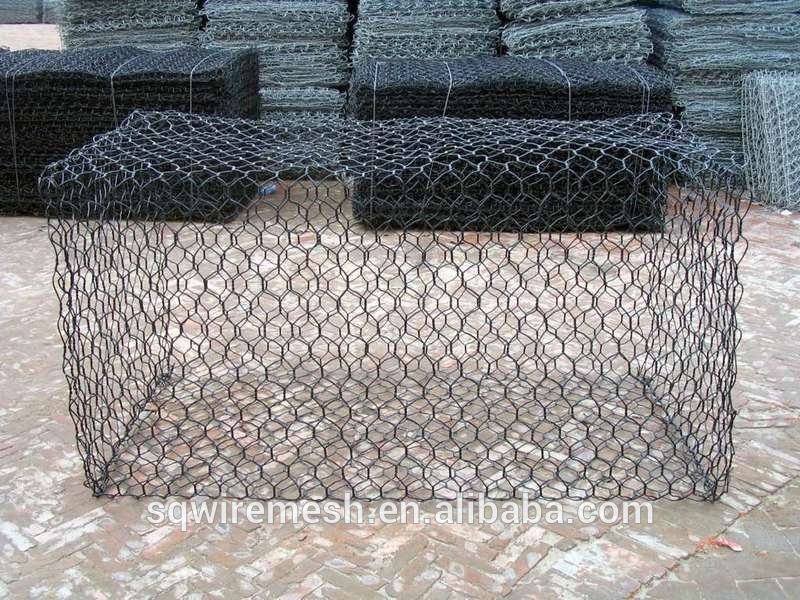

Galvanized Gabion Box:
Custom products& standard
PVC coated with UV stabilizer
Provide any size
Available in 5 finishes:Galvanized steel and PVC coated ,High zinc-aluminium alloy
mesh | Min.Gal.v | Width | Wire Gauge (Diameter) | ||
Inch | mm | Tolerance (mm) | |||
3/8” | 10mm | ±1.0 | 0.75mm-145 | 2’-1m | 27,26,25,24,23 |
1/2” | 13mm | ±1.5 | 0.7mm-95 | 2’-2m | 25,24,23,22,21 |
5/8” | 16mm | ±2.0 | 0.7mm-70 | 2’-2m | 27,26,25,24,23,22 |
3/4” | 20mm | ±3.0 | 0.7mm-55 | 1’-2m | 25,24,23,22,21,20,19 |
1” | 25mm | ±3.0 | 0.9mm-55 | 1’-2m | 25,24,23,22,21,20,19,18 |
1-1/4” | 31mm | ±4.0 | 0.9mm-40 | 1’-2m | 23,22,21,20,19,18 |
1-1/2” | 40mm | ±5.0 | 1.0mm-45 | 1’-2m | 23,22,21,20,19,18 |
2” | 50mm | ±6.0 | 1.2mm-40 | 1’-2m | 23,22,21,20,19,18 |
2-1/2” | 65mm | ±7.0 | 1.0mm-30 | 1’-2m | 21,20,19,18 |
3” | 75mm | ±8.0 | 1.4mm-30 | 2’-2m | 20,19,18,17 |
4” | 100mm | ±8.0 | 1.6mm-30 | 2’-2m | 19,18,17,16 |
Diaphragm:
Gabions are divided into cells with diaphragms(usually spaced at 1 meter or 3' intervals),whose function is to reinforce the structure. The mesh(except for diaphragms )is reinforced on all edges with wires of a larger diameter to strengthen the gabions and facilitate the assembly and installation.
Company introduction
Our company is a big direct manufacturer with a long history on this line for 20 years.As a leading manufacturer in China.We pay muchattentions to the quality assurance and quick delivery.
name :Jackjia
phone :008618233134313
WhatsApp :008618233134313
Skype :Jackjia20
