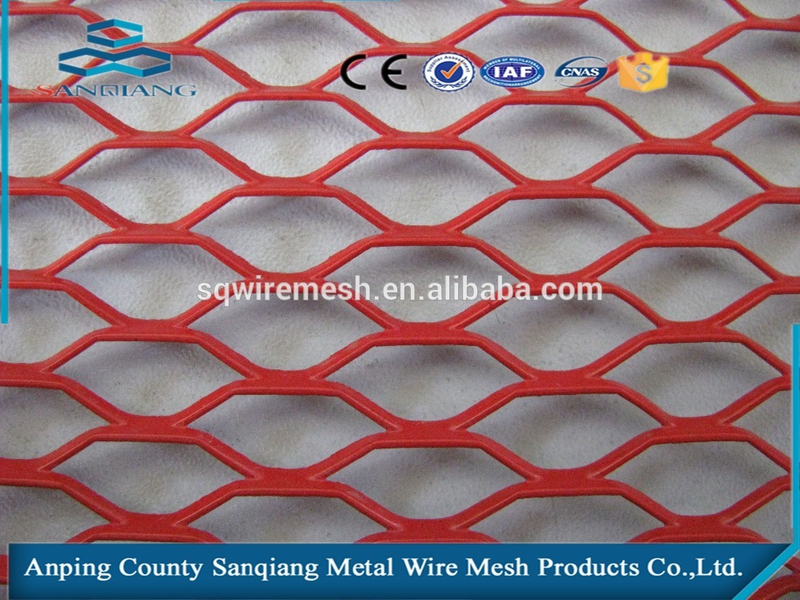

HEXAGONAL SHEET
Expanded Metal
Expanded metal is one type of the products,the material can be the carbon steel,aluminum palte,stainless steel. it can be used in the building,oil industry as the filters,the galvanized steel flattened expanded metal normally used as the filters for the air,grease.
the powder coated flattened expanded metal surface can be coated by the green colore,white color,black colre,sky bule
Following are some specifications for the expanded metal
Thickness of plate (mm) |
Nominal size of mesh (mm) |
Size of standard products (mm) |
| |||
|
|
|
|
| ||
THICKNESS | SWD | LWD | STRAND | WIDTH | LENGTH | kg/m2 |
0.8 | 10 | 25 | 1.12 |
|
| 1.41 |
12 | 30 | 1.35 | ||||
15 | 40 | 1.68 | ||||
2.0 | 18 | 50 | 2.03 | 1800 2000 2500 | 3600 4000 5000 | |
22 | 60 | 2.47 | ||||
29 | 80 | 3.26 | 4.42 | |||
36 | 100 | 4.05 | ||||
44 | 120 | 4.95 | 5.29 | |||
3.0 | 36 | 100 | 4.05 | |||
44 | 120 | 4.95 | ||||
55 | 150 | 4.99 | 2000 | 5000 | 4.27 | |
2500 | 6400 | |||||
65 | 180 | 4.60 | 2000 | 6400 | 3.33 | |
2500 | 8000 | |||||
4 | 22 | 60 | 4.5 | 1500 | 2000 | 2000-3000 | 12.84 |
30 | 80 | 5 | 2000-4000 | 10.46 | ||
38 | 100 | 6 | 2000-4500 | 9.91 | ||
5 | 24 | 60 | 6 | 2000-3000 | 19.62 | |
35 | 80 | 6 | 2000-4000 | 14.71 | ||
38 | 100 | 7 | 2000-4500 | 14.67 | ||
56 | 150 | 6 | 2000-6000 | 8.41 | ||
76 | 200 | 6 | 2000-6000 | 6.19 | ||
6 | 32 | 80 | 7 |
| 2000-4000 | 20.60 |
38 | 100 | 7 | 2000-4500 | 17.35 | ||
56 | 150 | 7 | 2000-6000 | 11.77 | ||
Our product pictures
Packing
Our Company:
Compang and Service:
