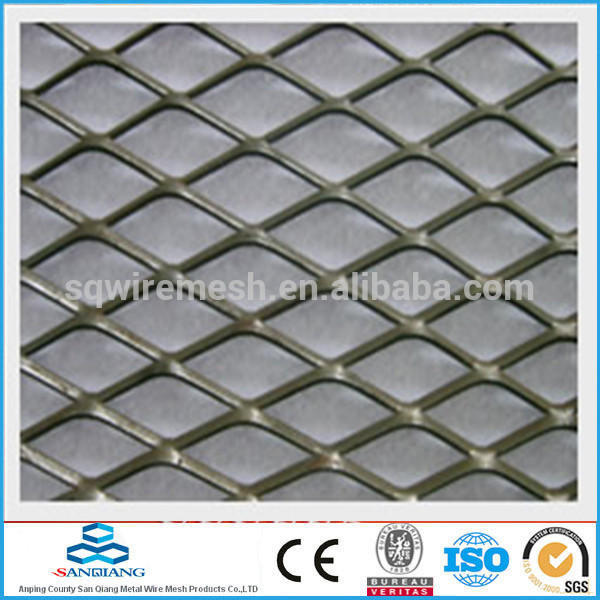

SQ-Aluminum Expanded Metal Mesh(top sale)
1.Aluminum Expanded Metal
It is made of high quality aluminum sheet/coil after being expanded on the automatic expanded machines.
2.Aluminum Expanded Metal
This kind of expanded metal has the features of light weight, shining appearance, economical, slip-resistance surface, easily to be bent or formed in any direction.
3.Aluminum Expanded Metal Variety:
Small, medium and heavy expanded metal mesh. Expanded aluminum mesh, expanded platinum filtration mesh, expanded brass mesh, expanded copper mesh, expanded stainless steel mesh, expanded nickel mesh. Opening in the shape of diamond, hexagonal or special shape.
4.Aluminum Expanded Metal Use:
Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships. Also serve as reinforcing bar in construction, railway and bridges.
5.Expanded Aluminum Metal we offered is further divided into different grades:
Expanded Aluminum Metal, Standard Rhombic Shaped
Expanded Aluminum Metal, Heavy Type (Tortoise-shaped)
Expanded Aluminum Metal, Flattended Type
Micron Expanded Metal in Aluminum Foil
Expanded Aluminum Metal, Special Types
| Thickness | 0.5--10mm |
| Hole size | SWD:10--100mm LWD:10--100mm |
| Strand width | 10--100mm |
| Sheet size | width1--4m ,length :1--30m . plate or roll |
| Surfance treatment | pvc coated or galvanized ,standard and flattened |
| Type | light , middle ,high |
| Packing | Less than one container with the waterproof paper and wooden pallet . One container with the waterproof paper |
| Specification of Expanded Metal Mesh | ||||||
| Sheet Thickness(mm) | Opening in Width (mm) | Opening in Length (mm) | Strand Width(mm) | Roll Width (m) | Roll Length (m) | Weight (kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
We are the manufacturer which sales all kinds of expanded metal wire mesh.Welcome your enquiry and welcome you to our factory.We assure that we will delivery the goods as soon as receiving the deposit.
