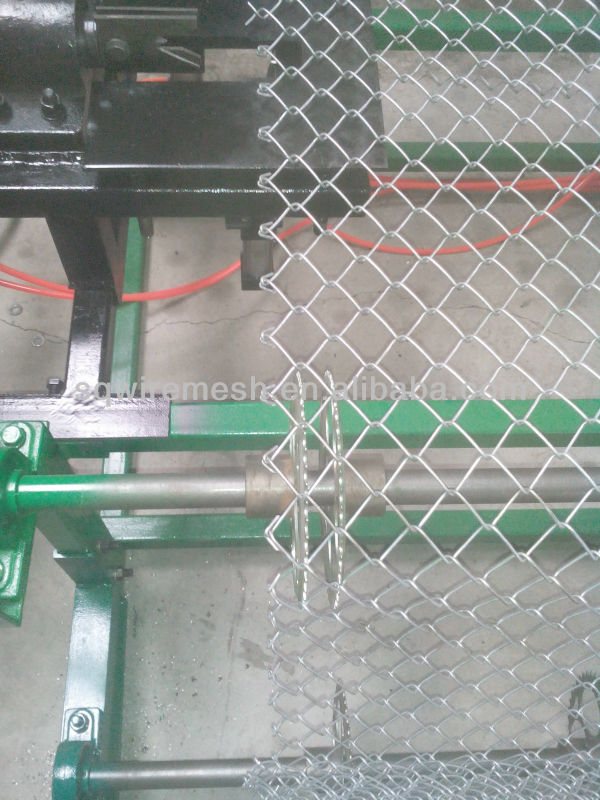

chai link automatic diamond mesh machine

  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: Sanqiang
  • Model Number: SQ-D24
  • place of origin: Anping,Hengshui,Shijiazhuang
  • color: green
  • size: 2100x1900x1500
  • hole size: 25x25mm-175x175mm
  • brand: Sanqiang
  • Packaging Details: with plastic film.
  • Delivery Detail: within 7-10 days after gettng your deposit


automatic diamond mesh machine
hole size:25x25-175x175
the finished good acrroing to the model

                                                            Automatic Diamond Mesh Machine



Chain link machine for manufacturing chain link fences of different sizes. The wire is taken in from the payoff stand and passed through the dies where the DIAMOND SIZE takes place. Different gap sizes. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process. Once the stitching is complete the woven is manually glided down to enable the next stitch to take place.

The chain link is automatically wound to form rolls when the desired length is manufactured.

The machine is controlled by PLC automatic controller, so only one person is needed to operate it.

One side or both sides of the end of net hole is twisted or with burr in edge.

Use compacting machine to make it into rolls.




Wire Diameter

1.8-4.2mmFeeding Wire Numbers: two
(Note: Steel Wire Standard: GB3081-82 YB544-65; Material Standard: B1F-B3F

Size of Mesh


Netting Width


Power and Rated voltage

9.0KW  380V,50HZ


3700x1430x1800  2100x1700x1250


♣Electric System:

               The machine is controlled by PLC automatic controller

               Germany Siemens PLC origin

               The inverter is selected from high quality products

               Of Japan”YASKAWA”


               Low-voltage electrical from Germany Schneider

               Electric&Machinery from Taiwan Teco Electric

               Clutch from Taiwan YA CO,.LTD.

 Suitable wire to the machine:

High-quality low-carbon steel wire ,Galvanized steel wire ,Stainless steel wire ,Aluminum alloy wire,Aluminum-clad steel wire.


Chain Link Fencing is extensively used as fences for playground and gardens,super highway,railway,airport,port,residence,etc.
