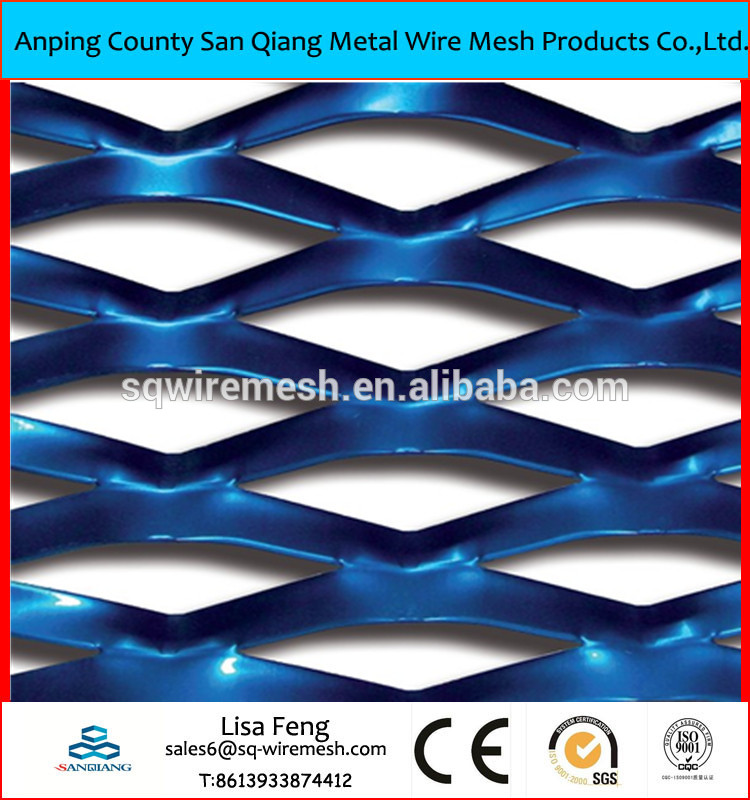

decorative expanded metal mesh
1.Specifications
LWM: 3.0MM-100MM
SWM: 2.0MM-80MM
Strand Thickness: Up to 8.0MM
Strand Width: 0.3MM-8.0MM
Width: 0.5M-2.4M
Length: 0.5M-25M
Detailed Specification of Expanded Metal Mesh
| Sheet Thickness(mm) | Opening in Width (mm) | Opening in Length (mm) | Strand Width(mm) | Roll Width (m) | Roll Length (m) | Weight (kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
2.Meterials :
stainless steel plate , aluminium plate,common carbon plate ,brass plate ,nickle plate,
titanium plate ,iron plate ,Al-Mg alloy plate.
3.Hole patterns available
The expanded metal hole patterns are diamond ,hexagonal,waved,etc,other hole patterns is also available as your requirement.
4.The Surface Treatment we can do
(1) hot-dipped galvanized
(2)electro galvanized
(3)PVC Coated
(4) Vinly Coated
(5)Oxidation or as your request
you can look the following to choose what you prefer
