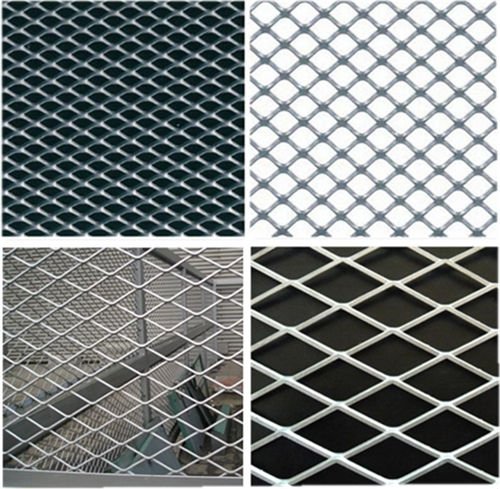

Expanded metal
Many kinds of material are available, low carbon steel sheet , galvanized sheet , aluminum sheet , stainless steel sheet etc.
Different surface finishine are available, galvanizing , cleaning, anodozing, printing etc
Specifications below for your reference.
Low carbon steel expanded metal
| Short Width Distance(mm) | Long Width Distance(mm) | Mesh Thickness(mm) | Strand(mm) | Weight(kg/m2) |
| 2.3 | 3 | 0.4 | 0.4 | 1.1 |
| 2.5 | 5 | 0.4 | 0.3 | 0.75 |
| 3 | 6 | 0.6 | 0.5 | 1.57 |
| 4 | 8 | 0.5 | 0.6 | 1.17 |
| 5 | 10 | 0.6 | 0.6 | 1.13 |
| 7 | 15 | 0.7 | 0.7 | 1.1 |
| 8 | 12.5 | 0.8 | 0.75 | 1.19 |
| 8 | 16 | 0.5 | 1.2 | 1.18 |
| 9 | 16 | 0.8 | 1.1 | 1.55 |
| 10 | 20 | 0.8 | 1.3 | 1.6 |
| 12 | 25 | 0.7 | 1.2 | 1.1 |
| 15 | 30 | 1.2 | 205 | 3.14 |
| 20 | 30 | 0.5 | 0.8 | 0.32 |
| 20 | 30 | 1.1 | 1.8 | 1.55 |
| 25 | 50 | 1.0 | 2 | 1.25 |
| 26 | 60 | 1.4 | 2.5 | 2.1 |
| 36 | 100 | 2.0 | 4.05 | 3.53 |
| 55 | 150 | 3 | 5 | 4.27 |
Aluminum expanded metal
| SWD(mm) | LWD(mm) | Mesh Thickness(mm) | Strand(mm) | Weight(kg/m2) |
| 2.3 | 4 | 0.4 | 0.3 | 0.28 |
| 2.5 | 5 | 0.5 | 0.5 | 0.54 |
| 3 | 6 | 0.6 | 0.7 | 0.75 |
| 3.5 | 4 | 0.5 | 0.5 | 0.38 |
| 4 | 8 | 0.5 | 0.6 | 0.40 |
| 4.5 | 5 | 0.5 | 0.5 | 0.30 |
| 5 | 10 | 0.6 | 0.6 | 0.38 |
| 7 | 12 | 0.8 | 0.7 | 0.43 |
| 7 | 8 | 0.6 | 0.6 | 0.28 |
| 8 | 16 | 0.8 | 1.2 | 0.64 |
| 10 | 20 | 1.2 | 1.5 | 0.97 |
| 12 | 25 | 1.2 | 1.2 | 0.64 |
| 20 | 30 | 1.0 | 2.0 | 0.54 |
| 25 | 50 | 2.0 | 2.5 | 1.08 |
| 30 | 60 | 3.0 | 3.0 | 1.60 |
| 40 | 80 | 4.0 | 6.0 | 3.20 |
| 50 | 100 | 5.0 | 6.0 | 3.25 |
