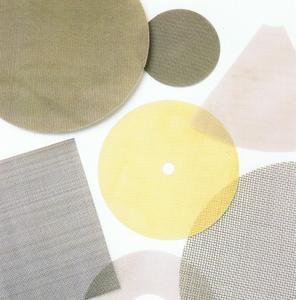

multilayer cut wire mesh

Place of Origin: Hebei, China (Mainland)
Material: Stainless Steel Wire
Type: Weave Wire Mesh
Application: Screen
Weave Style: Plain Weave,Twill Weave,Dutch Weave
Wire Diameter: 0.032mm-0.4mm
Technique: Woven
Model Number: SQ-7001
Brand Name: San Qiang
Packaging Details: water proof paper,plastic bag,woven bag or according to the customer's requirement
Delivery Detail: 1-4 weeks according to the quantity needed

Quantity:



Inquire Add to Basket

Product Description

Specifications

multilayer cut wire mesh
ISO9001:2000
The factory is 20 years old
High quality and low price
Quality service

multilayer cut wire mesh

Material:Stainless steel wire 201,304,316,304L,316L etc or black wire

Woven pattern:Plain weave,Twill weave,Dutch weave

Features:acid-resistant,alkali-resistant,hot-resistant,pulling force & wear-resisting strong.

Plain weave:

Mesh/Inch	Wire diameter( mm )	Aperture( mm )
2mesh	1.80	10.90
3mesh	1.60	6.866
4mesh	1.20	5.15
5mesh	0.91	4.17
6mesh	0.80	3.433
8mesh	0.60	2.575
10mesh	0.55	1.990
12mesh	0.50	1.616
14mesh	0.45	1.362
16mesh	0.40	1.188
18mesh	0.35	1.060
20mesh	0.30	0.970
26mesh	0.28	0.696
30mesh	0.25	0.596
40mesh	0.21	0.425
50mesh	0.19	0.318
60mesh	0.15	0.273
70mesh	0.14	0.223
80mesh	0.12	0.198
90mesh	0.11	0.172
100mesh	0.10	0.154
120mesh	0.08	0.132
140mesh	0.07	0.111
150mesh	0.065	0.104
160mesh	0.065	0.094
180mesh	0.053	0.088
200mesh	0.053	0.074
250mesh	0.04	0.061
300mesh	0.035	0.049
325mesh	0.03	0.048
350mesh	0.03	0.042
400mesh	0.25	0.0385
Width of stainless steel wire mesh:0.6m-1.5m

Twill weave:

Mesh/Inch	Wire Diameter. (mm)	Opening (mm)	Material (AISI)
250mesh	wire dia.0.040mm	0.063	304 or 316
300mesh	wire dia.0.040mm	0.044	304 or 316
325mesh	wire dia.0.035mm	0.043	304 or 316
350mesh	wire dia.0.030mm	0.042	304 or 316
400mesh	wire dia.0.030mm	0.033	304 or 316
500mesh	wire dia.0.025mm	------	316

Dutch weave:

Mesh x Mesh	Wire Diameter x Wire Diameter	Material
24mesh x 110mesh	0.35mm x 0.25mm	AISI 304/316
30mesh x 150mesh	0.23mm x 0.18mm	AISI 304/316
50mesh x 600mesh	0.18mm x 0.11mm	AISI 304/316
20mesh x 200mesh	0.75mm x0.21mm	AISI 304/316
50mesh x 250mesh	0.14mm x 0.11mm	AISI 304/316
20mesh x 250mesh	0.25mm x 0.20mm	AISI 304/316
30mesh x 360mesh	0.23mm x 0.15mm	AISI 304/316
12mesh x 120mesh	0.35mm x 0.224mm	AISI 304/316
20mesh x 80mesh	0.45mm x 0.35mm	AISI 304/316
80mesh x 700mesh	0.06mm x 0.05mm	AISI 304/316
165mesh x 800mesh	0.071mm x 0.045mm	AISI 304/316
165mesh x 1400mesh	0.071mm x 0.04mm	AISI 304/316
200mesh x 1800mesh	0.05mm x 0.032mm	AISI 304/316
