2016 hot selling galvanized iron field fences
1.Material: Low carbon steel wire and other materials.
2.Product Features: Corrosion resistant, age resistant, sunshine proof, weather proof.
3.Corrosion Form: Electric galvanized, Hot-dipped galvanized after welded, Powder coated, PVC coated.
4.Process: Made through weaving, punching and welding.
1. Weld wire mesh fence
| Specifications of weld wire mesh fence: | |||||||
| Wire Dia. | Mesh size | Panel width | Panel height | Fold no. | Post height | Post model | |
| Fix 1 | Fix 2 | ||||||
4.0mm 4.5mm 5.0mm 5.5mm 6.0mm | 200*50mm 200*55mm 200*60mm 200*65mm | 2.0mm 2.255mm 2.5mm 3.0mm | 830mm | 2 | 1200mm | 900mm |
Holland post |
| 1030mm | 2 | 1400mm | 1200mm | ||||
| 1230mm | 2 | 1600mm | 1400mm | ||||
| 1530mm | 3 | 2000mm | 1700mm | ||||
| 1730mm | 3 | 2200mm | 1900mm | ||||
| 1830mm | 4 | 2300mm | 2000mm | ||||
| 2030mm | 4 | 2500mm | 2200mm | ||||
| 2230mm | 4 | 2700mm | 2400mm | ||||
| 2530mm | 5 | 3000mm | 2600mm | ||||
| Note: The fence can be customized according to your request. |
2. Chain link fence
| Dimension of Galvanized Chain Link Mesh | |||
| Mesh | Wire Diameter | Width | Length |
| 40mm×40mm | 1.8mm-3.0mm | 0.5m-4.0m | 5m-25m |
| 50mm×50mm | 1.8mm-3.5mm | 0.5m-4.0m | 5m-25m |
| 60mm×60mm | 1.8mm-4.0mm | 0.5m-4.0m | 5m-25m |
| 80mm×80mm | 2.5mm-4.0mm | 0.5m-4.0m | 5m-25m |
| 100mm×100mm | 2.5mm-4.0mm | 0.5m-4.0m | 5m-25m |
| Dimension of PVC Coated Chain Link Mesh | |||
| Mesh | Wire Diameter | Width | Length |
| 40mm×40mm | 2.8mm-3.8mm | 0.5m-4.0m | 5m-25m |
| 50mm×50mm | 3.0mm-5.0mm | 0.5m-4.0m | 5m-25m |
| 60mm×60mm | 3.0mm-5.0mm | 0.5m-4.0m | 5m-25m |
| 80mm×80mm | 3.0mm-5.0mm | 0.5m-4.0m | 5m-25m |
| 100mm×100mm | 3.0mm-5.0mm | 0.5m-4.0m | 5m-25m |
| Chain link fence surface treatment: | |||
| Surface treatment | Min | Max | |
| Electro Galvanized | 15g/m2 | 25g/m2 | |
| Hot dip galvanized | 30g/m2 | 366g/m2 | |
| PVC/PE Coated | 400microns | 1000microns | |
The following are all kinds of parts:
Various applications:

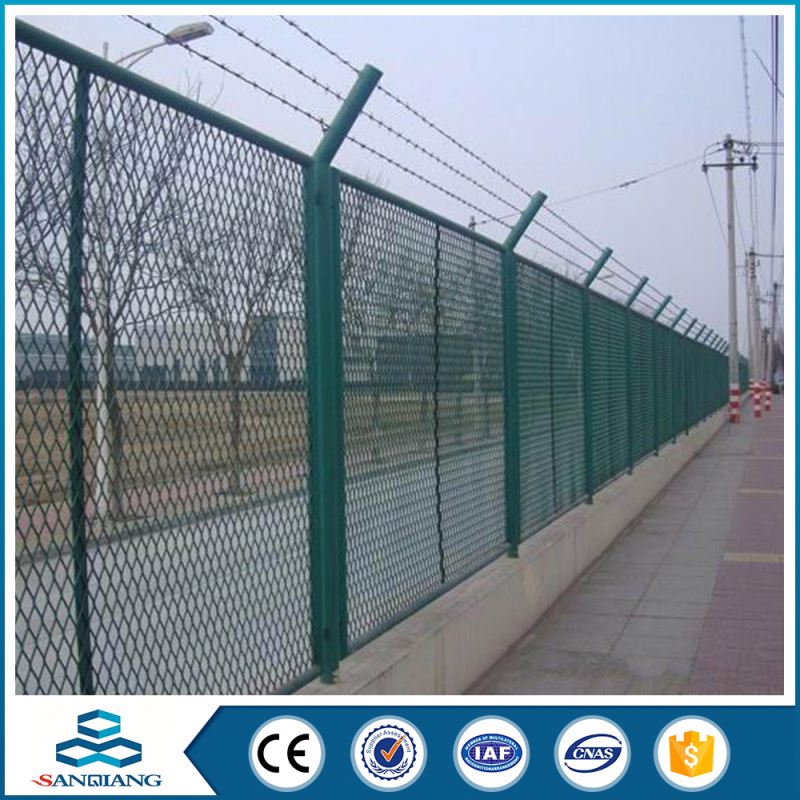

It is used for fencing and protecting road, railway, airport, residence district, seaport, garden, stadium, feeding and husbandry.
Residence district Airport
Stadium Road
Our service:
1. 24 hours service will be always available.
2. We can customize the product according to your design.
3. We follow the principle – be honest, professional and efficient.
4. Perfect after-sales service.
5. If you are interested in our products or related products, please contact us.
FAQ:
1. How much about your annual production capacity?
More than 2000tons.
2. What makes your products different from other company ' s?
We provide customized service, warranty service, with strictly quality control, perfect quantity and very competitive price.
3. What is your terms of payment?
100% TT, L/C at sight, you also can pay by West Union, Crash.
4.How about the delivery time?
Usually within15- 20days, customized order may need longer time.
5. Is there quality control on all production lines?
Yes,all production line have adequate quality control.
6. How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
