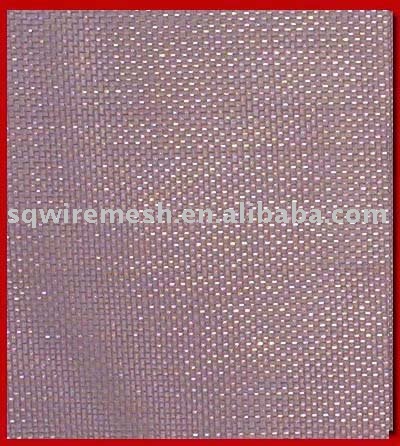

Copper WireMesh
Copper wire mesh is made of copper wire. Copper wire mesh and cloth is an ideal mesh for fabricating gasoline filters and baskets for electro polishing.
Features: plain weaving, twill weaving, corrosion resistance, electrical and thermal conductivity, spark resistance, non-magnetic properties.
Uses: used in all kinds of liquid and gas's filter of particulate. powder. porcelain clay and glass print.
Copper Wire Mesh | ||
| Mesh/Inch | Wire Dia.(mm) | Aperutre(mm) |
4 | 0.71 | 5.64 |
5 | 0.55 | 3.70 |
8 | 0.45 | 2.70 |
10 | 0.41 | 2.10 |
20 | 0.31 | 0.96 |
22 | 0.27 | 0.88 |
24 | 0.25 | 0.80 |
40 | 0.15 | 0.48 |
44 | 0.13 | 0.44 |
50 | 0.12 | 0.38 |
50 | 0.11 | 0.398 |
60 | 0.10 | 0.32 |
60 | 0.12 | 0.30 |
80 | 0.12 | 0.198 |
