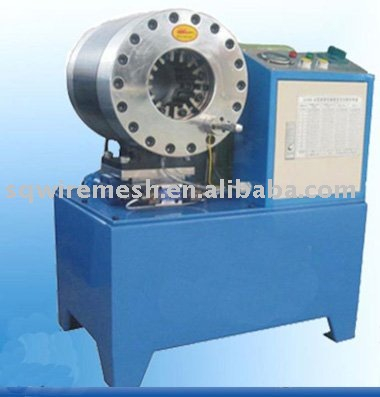

Model DX68 is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering.
This machine has the following features: small size and easy to move around, big swage force, low noise and easy to operate. The buckling amount can be precisely adjusted through a scale. It makes the division of the composite dies more even through the double inclined plane eight-flap die head holder equipped with a high accuracy guiding device.
DX68 Technical Parameters
1. Crimping Range (hose ID):Φ1/4-2 inches
2. Max Swage force: 449T
3. Swage accuracy: 0.02mm
4. Rated pressure: 31.5MPa
5. Oil pump out-let quantity: 5ml/rad (380V)
6. Dimension: 670*490*780 mm
7. Weight: 200kg
