aluminum plate flattened expanded metal mesh

  • Place of Origin: Hebei, China (Mainland)
  • Material: Aluminum Alloy
  • Type: Expanded Mesh
  • Application: Protecting Mesh
  • Weave Style: expaned mesh
  • Wire Diameter: Requirement
  • Technique: Perforated
  • Model Number: SQ-01-03
  • Brand Name: SAQIANG
  • Color: Silver
  • Feature: Eco-friendly
  • Name: Sanqiang Expanded Metal Mesh
  • Surface treatment: Hot Dipped Galvanized
  • Hole shape: Round
  • Usage: Industry
  • Certificate: ISO9001
  • Size: 1"-30"
  • Advantage: Prices
  • Shape: Bowl-shaped
  • Packaging Details: in pallet or waterproof cloth include blue cloth and white cloth or waterproof paper or wooden case or special packing is also ok .
  • Delivery Detail: within 15 days after getting the order deposit
Quantity:




Product Description

 Our product specification

Flattened expanded metal mesh

specification for the flattened expanded metal mesh



Ref No. Mesh Aperture
LW (mm)
Mesh Aperture
SW (mm)
Strand Width Strand Thickness Weight kg / m2 Sheet Size LWD x SWD Material Type
06-24FG 3.50 2.05 0.79 0.56 2.05 1250 x 1250 Pre-Galv
08-64FG 5.00 3.45 1.30 0.70 2.35 1250 x 2500 Pre-Galv
Galv FM 6.00 4.00 0.80 0.60 1.29 1250 x 1250 Pre-Galv
38-85FGR 35.05 12.45 2.31 1.14 2.47 1250 x 2440 Pre-Galv

10-17F 6.85 3.56 1.30 0.90 2.97 1250 x 2500 Mild Steel
12-20F 9.50 5.00 1.30 0.90 2.42 1250 x 1830 Mild Steel
19-94F 14.22 4.80 1.85 0.90 3.07 1250 x 2500 Mild Steel
30-79F 23.11 5.84 3.20 1.52 6.27 2440 x 1220 Mild Steel
30-80F 24.38 7.11 2.39 1.14 3.64 2440 x 1220 Mild Steel
30-81F 24.38 7.87 2.06 1.47 4.07 2440 x 1220 Mild Steel
30-82FR 24.38 7.62 2.08 1.14 3.17 1250 x 2440 Mild Steel
38-84F 32.77 10.92 3.18 1.50 4.41 2440 x 1220 Mild Steel
38-85F 33.53 12.45 2.31 1.14 2.47 2440 x 1220 Mild Steel
50-73F* 42.93 14.22 4.60 2.69 8.59 2440 x 1220 Mild Steel
50-74F 39.12 18.29 4.72 2.74 7.55 1220 x 2440 Mild Steel
50-76F* 43.43 18.03 2.31 1.14 1.85 1250 x 2440 Mild Steel
50-76F* 43.43 18.03 2.31 1.14 1.85 2440 x 1220 Mild Steel & Pre Galv
50-77F 43.18 17.27 3.23 1.45 3.24 2440 x 1220 Mild Steel
60-90F* 42.93 17.00 6.00 3.70 13.16 1220 x 2440 Mild Steel
85-93F 77.47 27.18 6.53 2.90 7.15 2440 x 1220 Mild Steel


10-17AF 6.86 3.56 1.27 0.90 1.00 1250 x 2500 Aluminium
19-94AF 13.97 4.83 1.80 0.90 1.03 1250 x 2500 Aluminium
30-80AF 24.10 7.11 2.39 1.14 1.20 1250 x 2440 Aluminium
38-85AF 35.05 11.94 2.34 1.14 0.87 1250 x 2440 Aluminium
50-74AF 40.64 17.78 4.00 2.90 2.82 1250 x 2500 Aluminium
50-76AF 43.18 17.78 2.34 1.12 0.63 1250 x 2000 Aluminium

19-94SF 14.22 4.30 1.83 0.90 3.00 1250 x 2500 Stainless 304
19-94SF 316 14.22 4.30 1.83 0.90 3.00 1250 x 1830 Stainless 316
30-76SF 25.00 8.00 1.98 1.09 2.93 2500 x 1250 Stainless 304
30-81SF 316 25.00 8.00 1.98 1.35 4.05 2500 x 1250 Stainless 316

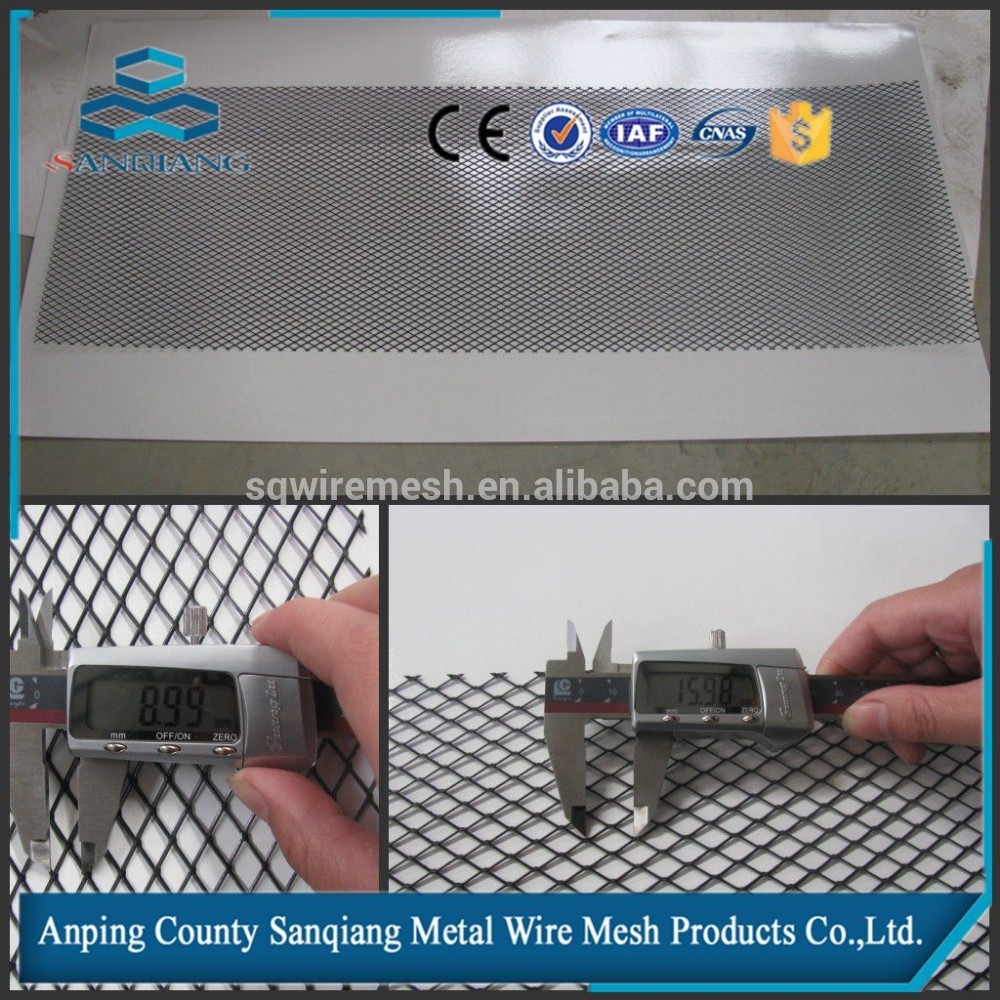

If you don't understand these complicated data ,it is OK ,I send the sample pictures for you:



OK , If you want to see our product more clearly, follow me !!!





 OK , wether you have the urge to place the order?Let us see the packing

Generally speaking ,we used the pallet ,woven bag and the carton to hold the expanded meatl mesh .

Now ,I show you two kinds of the packing .

1) use pallet :

 2) use woven bag

3) use carton













If you have any demand,please feel free to contact me!

E-mail :sales3(at)sq-wiremesh.com

Telephone :8618233134313

Skype :jackjia20

WhatsApp :8618233134313

WeChat :8618233134313



Waiting for your good news
