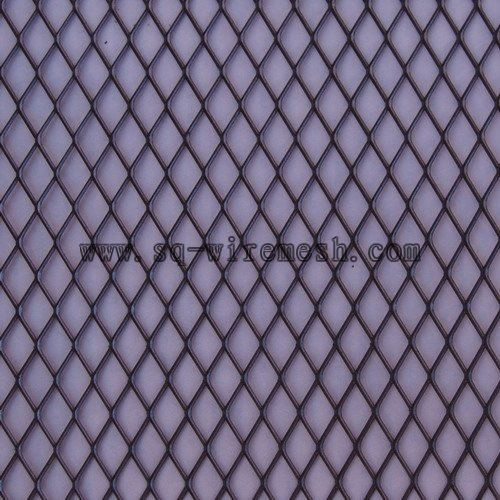

Expanded Metal Lath
Material: Aluminium plate, thin low carbon steel plate, stainless steel plate, Al-Mg alloy plate, copper plate and nickel plate.
Processing: Made by expanding. In the shapes of diamond, square, round, triangle and scale-like opening.
Features: Economic, enduring, graceful.
Uses: Be broadly used in the areas such as highway, railway, residence, irrigation works and the
protection partition of machines, electrical appliances, windows and aquiculture.
Size:long way of mesh:12.5-200mm,
short way of mesh:5-80mm,
thickness:0.5-8mm
Expanded metal mesh at length from 600-4000mm and width from 600-2000mm.
No. | Size | Thickness | Rib height | Weight | Hole Size |
1 | 2440mm*685mm | 0.3 | 1.5mm | 1.335kg/pc | 7mm*13mm |
2 | 2440mm*685mm | 0.35 | 1.5mm | 1.58kg/pc | 7mm*13mm |
3 | 2440mm*685mm | 0.4 | 1.5mm | 1.8kg/pc | 7mm*13mm |
4 | 2440mm*685mm | 0.45 | 1.5mm | 2.03kg/pc | 7mm*13mm |
5 | 2440mm*685mm | 0.5 | 1.5mm | 2.26kg/pc | 7mm*13mm |
6 | 2440mm*685mm | 0.55 | 1.5mm | 2.48kg/pc | 7mm*13mm |
7 | 2440mm*685mm | 0.6 | 1.5mm | 2.7kg/pc | 7mm*13mm |
Expanded Metal Lath
Material: Aluminium plate, thin low carbon steel plate, stainless steel plate, Al-Mg alloy plate, copper plate and nickel plate.
Processing: Made by expanding. In the shapes of diamond, square, round, triangle and scale-like opening.
Features: Economic, enduring, graceful.
Uses: Be broadly used in the areas such as highway, railway, residence, irrigation works and the
protection partition of machines, electrical appliances, windows and aquiculture.
Size:long way of mesh:12.5-200mm,
short way of mesh:5-80mm,
thickness:0.5-8mm
Expanded metal mesh at length from 600-4000mm and width from 600-2000mm.
No. | Size | Thickness | Rib height | Weight | Hole Size |
1 | 2440mm*685mm | 0.3 | 1.5mm | 1.335kg/pc | 7mm*13mm |
2 | 2440mm*685mm | 0.35 | 1.5mm | 1.58kg/pc | 7mm*13mm |
3 | 2440mm*685mm | 0.4 | 1.5mm | 1.8kg/pc | 7mm*13mm |
4 | 2440mm*685mm | 0.45 | 1.5mm | 2.03kg/pc | 7mm*13mm |
5 | 2440mm*685mm | 0.5 | 1.5mm | 2.26kg/pc | 7mm*13mm |
6 | 2440mm*685mm | 0.55 | 1.5mm | 2.48kg/pc | 7mm*13mm |
7 | 2440mm*685mm | 0.6 | 1.5mm | 2.7kg/pc | 7mm*13mm |
