Our product specification

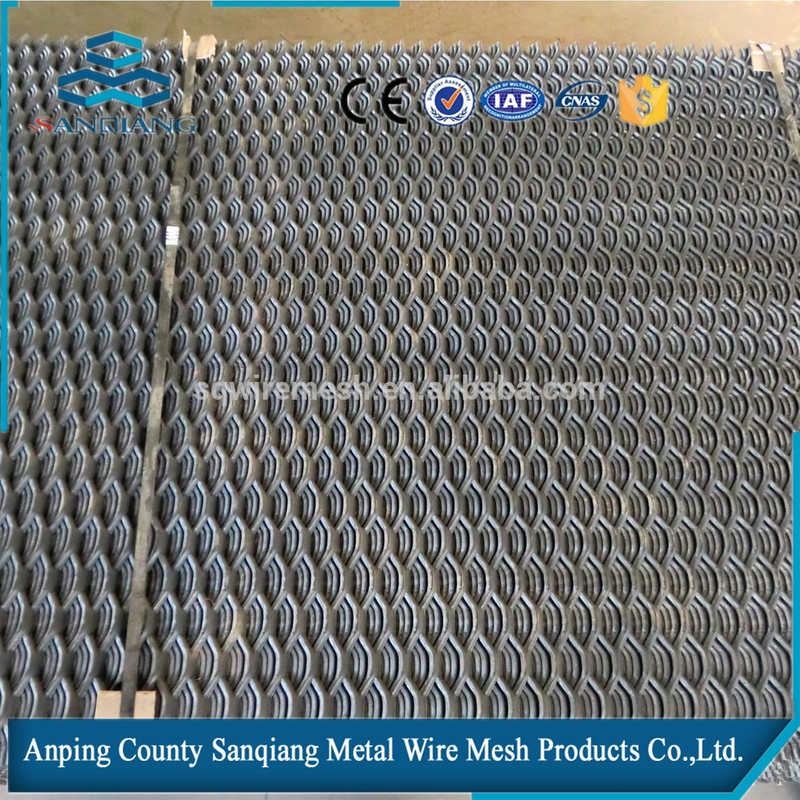

Flattened expanded metal mesh
specification for the flattened expanded metal mesh
Ref No. | Mesh Aperture LW (mm) | Mesh Aperture SW (mm) | Strand Width | Strand Thickness | Weight kg / m2 | Sheet Size LWD x SWD | Material Type |
06-24FG | 3.50 | 2.05 | 0.79 | 0.56 | 2.05 | 1250 x 1250 | Pre-Galv |
08-64FG | 5.00 | 3.45 | 1.30 | 0.70 | 2.35 | 1250 x 2500 | Pre-Galv |
Galv FM | 6.00 | 4.00 | 0.80 | 0.60 | 1.29 | 1250 x 1250 | Pre-Galv |
38-85FGR | 35.05 | 12.45 | 2.31 | 1.14 | 2.47 | 1250 x 2440 | Pre-Galv |
10-17F | 6.85 | 3.56 | 1.30 | 0.90 | 2.97 | 1250 x 2500 | Mild Steel |
12-20F | 9.50 | 5.00 | 1.30 | 0.90 | 2.42 | 1250 x 1830 | Mild Steel |
19-94F | 14.22 | 4.80 | 1.85 | 0.90 | 3.07 | 1250 x 2500 | Mild Steel |
30-79F | 23.11 | 5.84 | 3.20 | 1.52 | 6.27 | 2440 x 1220 | Mild Steel |
30-80F | 24.38 | 7.11 | 2.39 | 1.14 | 3.64 | 2440 x 1220 | Mild Steel |
30-81F | 24.38 | 7.87 | 2.06 | 1.47 | 4.07 | 2440 x 1220 | Mild Steel |
30-82FR | 24.38 | 7.62 | 2.08 | 1.14 | 3.17 | 1250 x 2440 | Mild Steel |
38-84F | 32.77 | 10.92 | 3.18 | 1.50 | 4.41 | 2440 x 1220 | Mild Steel |
38-85F | 33.53 | 12.45 | 2.31 | 1.14 | 2.47 | 2440 x 1220 | Mild Steel |
50-73F* | 42.93 | 14.22 | 4.60 | 2.69 | 8.59 | 2440 x 1220 | Mild Steel |
50-74F | 39.12 | 18.29 | 4.72 | 2.74 | 7.55 | 1220 x 2440 | Mild Steel |
50-76F* | 43.43 | 18.03 | 2.31 | 1.14 | 1.85 | 1250 x 2440 | Mild Steel |
50-76F* | 43.43 | 18.03 | 2.31 | 1.14 | 1.85 | 2440 x 1220 | Mild Steel & Pre Galv |
50-77F | 43.18 | 17.27 | 3.23 | 1.45 | 3.24 | 2440 x 1220 | Mild Steel |
60-90F* | 42.93 | 17.00 | 6.00 | 3.70 | 13.16 | 1220 x 2440 | Mild Steel |
85-93F | 77.47 | 27.18 | 6.53 | 2.90 | 7.15 | 2440 x 1220 | Mild Steel |
10-17AF | 6.86 | 3.56 | 1.27 | 0.90 | 1.00 | 1250 x 2500 | Aluminium |
19-94AF | 13.97 | 4.83 | 1.80 | 0.90 | 1.03 | 1250 x 2500 | Aluminium |
30-80AF | 24.10 | 7.11 | 2.39 | 1.14 | 1.20 | 1250 x 2440 | Aluminium |
38-85AF | 35.05 | 11.94 | 2.34 | 1.14 | 0.87 | 1250 x 2440 | Aluminium |
50-74AF | 40.64 | 17.78 | 4.00 | 2.90 | 2.82 | 1250 x 2500 | Aluminium |
50-76AF | 43.18 | 17.78 | 2.34 | 1.12 | 0.63 | 1250 x 2000 | Aluminium |
19-94SF | 14.22 | 4.30 | 1.83 | 0.90 | 3.00 | 1250 x 2500 | Stainless 304 |
19-94SF 316 | 14.22 | 4.30 | 1.83 | 0.90 | 3.00 | 1250 x 1830 | Stainless 316 |
30-76SF | 25.00 | 8.00 | 1.98 | 1.09 | 2.93 | 2500 x 1250 | Stainless 304 |
30-81SF 316 | 25.00 | 8.00 | 1.98 | 1.35 | 4.05 | 2500 x 1250 | Stainless 316 |
Some pictures for you:
Use the pallet
Or in roll
The customer is our god, our services are comprehensive, believe us, you won't be disappointed
If you have any demand,please feel free to contact me!
E-mail :sales3(at)sq-wiremesh.com
phone :8618233134313
WhatsApp :8618233134313
Skype :Jackjia20
QQ:478932930
Any way you want ,is OK !!!
